TYRE KILLER BIG

Automatic tyre killer vehicle barriers

Variant of the TYREKILLER Series, designed to provide maximum security by stopping unauthorized vehicles through an immediate tire-shredding system.

The TKBIG model is intended for high-risk environments. Hydraulic, automatic, and equipped with an external control station for easier maintenance, it features a wider structure and 450 mm spikes. It withstands impacts from heavy vehicles up to 7.5 tons at speeds up to 50 km/h, ensuring continuous protection and long-term reliability. Protective panels positioned beneath the spikes ensure maximum pedestrian safety.

Technical data
Dimensions

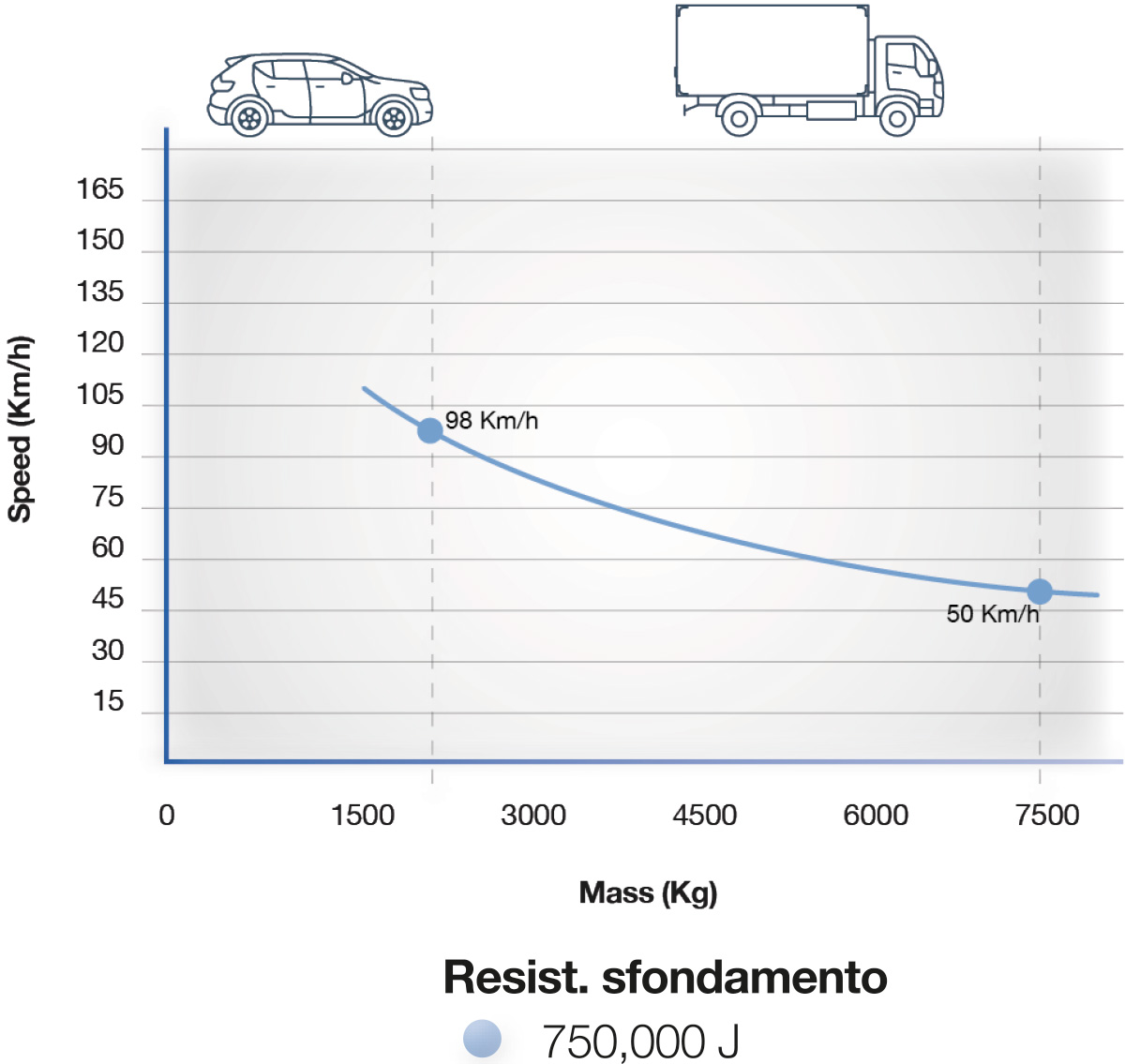

Crash test
Datasheet

Application areas

Protection of sensitive or high-security areas

Restricted-area boundary control

Theft protection

Standard configuration

Tyre Killer
Dispositivo per il controllo degli accessi veicolari

Stazione di gestione
Unità di controllo che gestisce il funzionamento del dispositivo

Customizations

A wide range of accessories makes it possible to customize the bollard to meet any aesthetic, functional, or security requirement.

Finishes
Safety
Functions
Controller

Technical data

Height of spikes above ground level	500 mm
Length	2 m – 3 m – 4 m – 5 m – 6 m
Spacing between spikes	200 mm (example: Tyre Killer Big, length 2 m = 10 spikes)
Thickness of spikes	20mm
Movement principle	Hydraulic
Frame surface finish	Anti-corrosion treatment - grey anthracite standard painting
Spikes surface finish	Anti-corrosion treatment - red standard painting
Rising time	4,5s
Lowering time	4,5s
EFO rising time	1,5s
Emergency lowering	Standard
Connection line to control unit	Standard 10m (max 30m)
Voltage for control unit	230/400 VAC (+/- 10%) 50/60Hz
Type of use	2000 Cycles/day
Life units	3.000.000 Cycles
Breakout resistance	750.000 J
Nominal operating temperature	-40°C +70°C (for low temperatures see heating resistance)
Load class (EN124)	D400
