RB500

Road blocker with shallow foundation

Variant of the RB series, which includes cutting-edge Road Blockers for perimeter protection with a shallow foundation.

With a reduced height of 500 mm, the Road Blocker RB500 has a lower visual impact while maintaining high structural solidity. It ensures maximum installation practicality thanks to its shallow foundation. Although not certified, it is built in compliance with international standards, making it an accessible solution for environments requiring reliable but non-critical protection.

Maintenance is further simplified thanks to the external hydraulic unit and control station.

Technical data
Dimensions

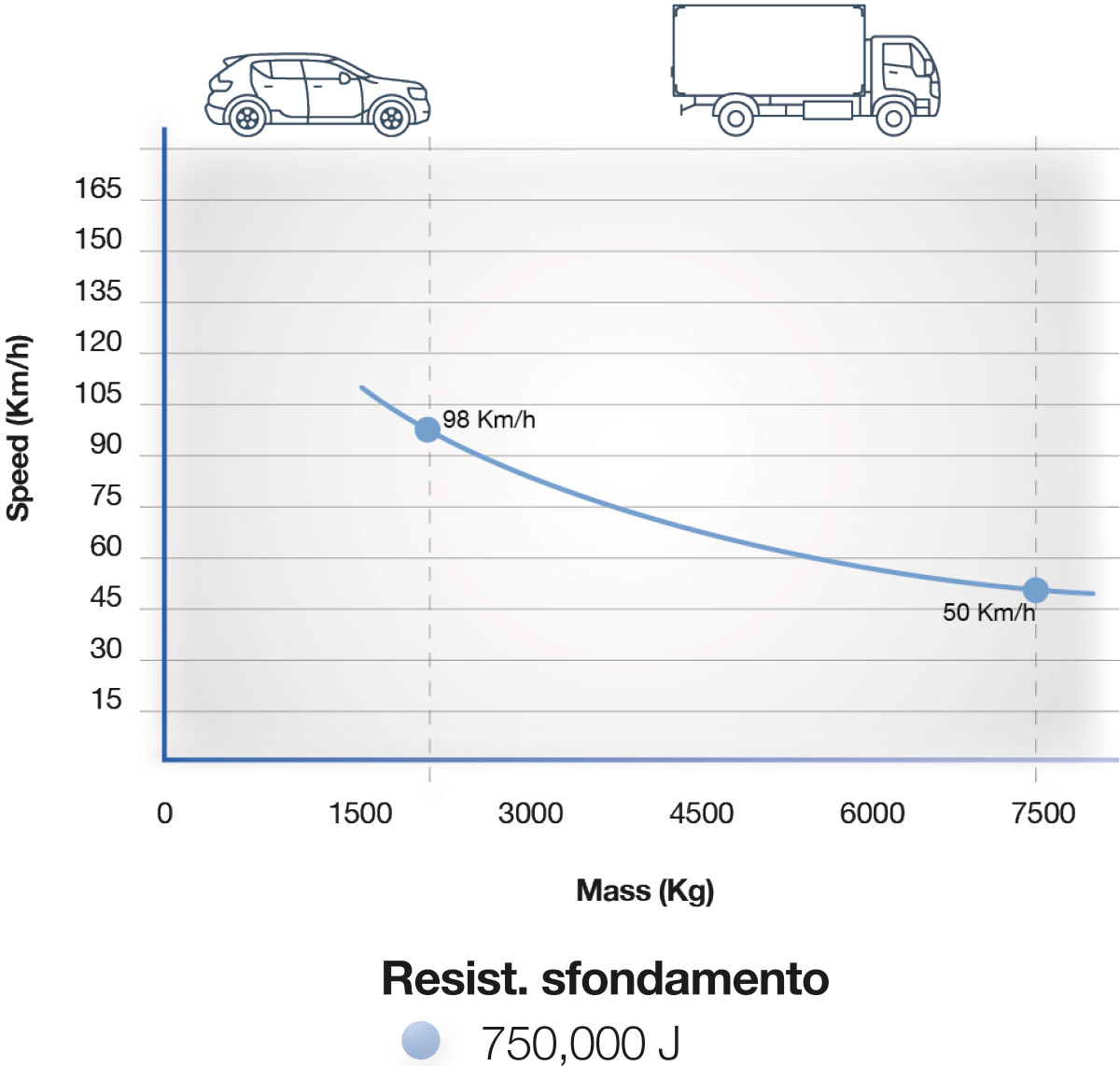

Crash test
Datasheet

Compliance

PAS68
IWA 14-1
ASTM

Application areas

Protection of sensitive or high-security areas

Restricted-area boundary control

Theft protection

Standard configuration

Road blocker
Dispositivo per il controllo degli accessi veicolari

Stazione di gestione
Unità di controllo che gestisce il funzionamento del dispositivo

Customizations

A wide range of accessories makes it possible to customize the bollard to meet any aesthetic, functional, or security requirement.

Finishes
Safety
Functions
Controller

Technical data

Platform height above ground level	500 mm
Platform length	2 m – 3 m – 4 m – 5 m – 6 m
Platform depth	300 mm
Movement principle	Hydraulic
Moving platform finish	Anti-corrosion treatment - grey anthracite standard painting
Metal plate surface finish	Steel chequered sheet, painted Optional: stainless steel chequered sheet
Reflecting adhesive strip	Standard - height 55mm
Rising time	4,5s
Lowering time	4,5s
EFO rising time	1,5s
Connection line to control unit	Standard 10m (max 30m)
Voltage for control unit	230 VAC (+/- 10%) 50/60Hz
Type of use	2000 Cycles/day
Life units	3.000.000 Cycles
Breakout resistance	750.000 J
Metal skirt for front and sides of road blocker	Standard - colour: white / red
Manual handling device	Optional
LED lighting strips (30 LEDs per metre)	Optional
Protection class	IP 67
Nominal operating temperature	-40°C +70°C (for low temperatures see heating resistance)
Load class (EN124)	D400
In compliance with	PAS68, IWA 14-1, ASTM M30 (K4)
